Introduction

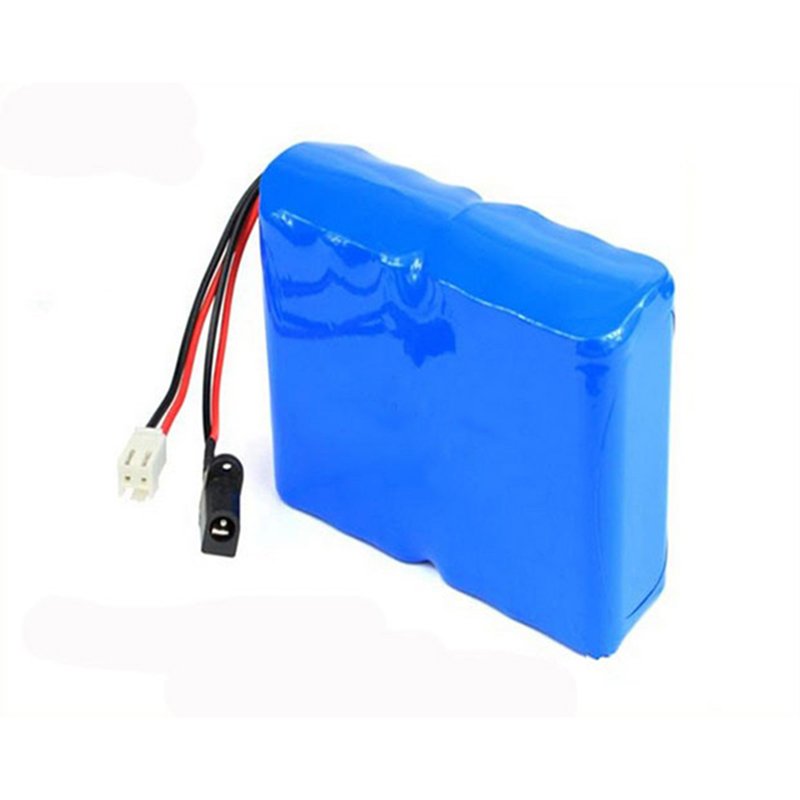

Lithium‑ion battery packs power diverse industrial applications, from portable equipment and power tools to e‑mobility and solar energy storage. A high‑performance battery pack is more than a simple assembly of cells. It demands thoughtful engineering design, precision manufacturing and strict safety verification to deliver stable performance, long service life and compliance with international regulations.
Every stage of lithium battery pack design and manufacturing shapes the final product’s reliability. Poor‑quality design or sloppy manufacturing can lead to premature failure, safety risks and costly rework for OEM buyers. This article walks through the full workflow of lithium battery pack design and manufacturing, delivering practical insights for OEM engineers and B2B procurement teams.
Core Principles of Lithium Battery Pack Design
Solid pack design balances three key factors: energy density, power output and safety cycle life. These parameters cannot all be maximized simultaneously. The optimal solution is always tailored to the end‑use scenario.
1. Cell Chemistry & Selection
Cell selection lays the foundation for overall pack performance. Common chemistries for custom battery packs:
- NMC (Nickel‑Manganese‑Cobalt): High energy density, widely adopted for portable devices, e‑bikes and consumer power packs.
- LiFePO4 (Lithium Iron Phosphate): Outstanding safety and extended cycle life, perfect for energy storage and heavy‑duty industrial equipment.
- LCO (Lithium Cobalt Oxide): High energy density, mainly used in consumer electronics.
Cell format also matters: cylindrical (18650 / 21700), prismatic or pouch cells. Each format brings unique advantages for space utilization, heat dissipation and mechanical robustness.
Critical note: Always deploy grade‑A matched cells. Mismatched cells will accelerate pack degradation, trigger early BMS protection and shorten overall service life. This is one of the most‑overlooked details in lithium battery pack design and manufacturing.
2. Series‑Parallel (S‑P) Configuration
Pack nominal voltage is defined by series (S) connections. Capacity and discharge current are determined by parallel (P) grouping.
- Series connection: raises nominal voltage
- Parallel connection: increases capacity and continuous discharge current
For example, a 13S4P pack means 13 cells connected in series and 4 in parallel, a typical configuration for e‑bike power systems. Correct S‑P layout is a fundamental part of lithium battery pack design and manufacturing, as wrong wiring creates dangerous operational hazards.
3. BMS (Battery Management System) Integration
The BMS serves as the control core of the battery pack, providing multi‑layer protection and real‑time monitoring. Key BMS functions:
- Over‑charge and over‑discharge protection
- Over‑current and short‑circuit cut‑off
- Cell voltage balancing (active or passive)
- Temperature monitoring via NTC thermistors
- Fault diagnosis and status reporting
For industrial applications, select a BMS with a continuous current rating at least 20% higher than your maximum working load to avoid unexpected shutdowns under heavy‑load conditions. BMS integration cannot be treated as an afterthought in lithium battery pack design and manufacturing.
4. Thermal Management Design
Lithium cells operate optimally between 25‑40 °C. Uneven temperature distribution across cells will speed up capacity loss. Common thermal solutions:
- Air cooling: cost‑effective, for low‑to‑medium power packs
- Thermal interface pads: improve heat transfer between cells and housing
- Liquid cooling: high‑performance solution for large‑capacity energy storage and EV‑grade packs.
5. Mechanical & Enclosure Design
Mechanical structure must satisfy installation requirements, vibration resistance and environmental protection demands.
- Enclosure options: flame‑retardant plastic, aluminum alloy housing
- IP rating: IP54 / IP65 for outdoor and industrial environments
- Internal insulation, shock‑absorbing structures and reliable bus‑bar mounting points.
6. Compliance & Safety Standards
Regulatory compliance should be considered from the design phase, not added after production.
- UN38.3: Mandatory for global air, sea and road transportation. Covers altitude, thermal cycling, vibration, shock, short‑circuit and abuse tests.
- IEC 62133‑2: Safety standard for portable lithium‑ion packs for CE‑marked European markets.
- UL 2054 / UL1642: Safety requirements for the North‑American market.
Step‑by‑Step Lithium Battery Pack Manufacturing Process
Manufacturing requires consistent, controlled workflows. Even with identical design drawings, manufacturing quality directly determines real‑world reliability. Every step in this phase is vital to successful lithium battery pack design and manufacturing.
Step 1: Cell Sorting & Matching
All incoming cells undergo sorting for voltage, internal resistance and capacity. Only cells with tight parameter tolerances can be grouped into one pack. Poor cell matching is one of the top causes of premature battery pack failure.
Step 2: Module Assembly
Cells are arranged following the S‑P layout. Bus‑bars are connected by spot‑welding or screw‑fastening. Strict torque control is required for screw connections to prevent loose contacts and overheating risks.
Step 3: BMS & Wiring Harness Installation
Mount the BMS board, install wiring harnesses, NTC temperature sensors, fuses and other safety components. Insulate all exposed conductive parts.
Step 4: Mechanical Housing & Sealing
Fit modules inside the enclosure and apply thermal interface materials. Potting or conformal coating can be applied for high‑vibration or harsh‑environment applications. Seal the housing to meet target IP protection levels.
Step 5: Full‑Range Electrical Testing
Every finished pack completes comprehensive factory testing:
- Open‑circuit voltage test
- Full‑charge and discharge cycle test
- BMS protection function verification (over‑charge, over‑discharge, short‑circuit)
- Insulation resistance test
- Cycle‑life evaluation for prototype and batch validation
Step 6: Final Inspection, Marking & Packaging
Complete visual inspection, label printing, traceability recording and proper packaging. Only packs passing all checks are cleared for shipment.
Common Pitfalls in Design & Manufacturing
- Under‑rated BMS current: BMS triggers unexpected cut‑off under peak load. Solution: size BMS current above maximum working load.
- Unmatched cells: Uneven cell voltage leads to rapid capacity fade. Strict cell sorting is essential.
- Poor thermal management: High operating temperatures drastically reduce cycle life.
- Compliance overlooked: Missing UN38.3 certification causes shipping delays or customs rejection for cross‑border trade.
Many of these mistakes can be avoided by following standardized best practices for lithium battery pack design and manufacturing.
OEM Custom Pack vs Off‑the‑Shelf Packs
- Off‑the‑shelf packs: Short lead‑time, lower cost, limited customization for form‑factor and performance.
- Custom lithium battery packs: Fully adapted to equipment dimensions, voltage, current and environmental conditions. Ideal for industrial OEM projects, yet requires prototype validation and longer lead‑times.
If you need fully custom solutions, partner with a factory that has deep experience in lithium battery pack design and manufacturing.
Conclusion
Lithium battery pack design and manufacturing is cross‑disciplinary engineering work. Success comes from balanced design decisions, rigorous cell selection, reliable BMS integration, robust thermal‑mechanical design, standardized manufacturing workflows and early‑stage compliance planning.
For B2B OEM projects, partnering with a qualified manufacturer offering full‑cycle design, prototype validation and complete compliance documentation can lower project risks and secure long‑term product performance.
